NC616E

Product Introduction

1. Support point-to-point protocol (PPP)
BBSea NC616E series serial communication servers support PPP, PAP, and DHCP
And other agreements to provide dial-in and dial-out services. Powerful processor (32bits,100M) and
Large memory (8M) makes it fast and stable.
2. Unique and practical parameter setting
Network port Settings: The network port of BBSea IO-Server can be set to 10/100M
Response mode and manual adjustment mode. You can adjust the IO-Server based on network conditions
Working mode of a network port
Serial port Settings: "After reading data from the serial port, the data is packaged and sent to the network
", this process is the serial port to Ethernet communication products in the process of internal procedures will
A step to be taken. You can enter the BBSea IO-Server Settings for "packaging" when
The machine is set up to suit particular networks and user programs.
3. Safety function
Network security is very important for console administration. BBSea
IO-Server provides restrictions including MAC address restrictions, IP address restrictions, and user restrictions
Including a series of safety mechanisms. The permissions include read, write, and control
Online
  • Product overview
  • Product characteristics
  • Technical index

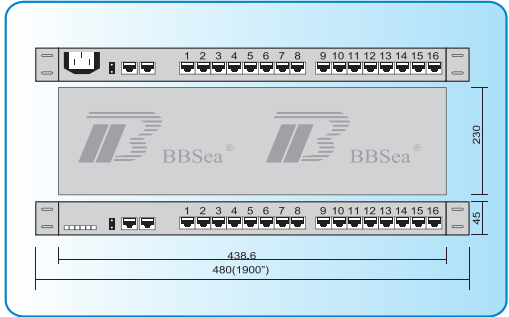

  • Dimensional line sequence
  • Purchase information
  • Relevant manuals

Provides 16 RS-232 serial ports


NC616E series IO-Servers provide convenience for connecting serial port devices to Ethernet


Fast connection mode. Because on the same model of IO-Server, RS- can be implemented


Type 232 serial ports coexist, so when you have two types


If a serial port device needs to be connected to an Ethernet network, only one IO-Server is required


Can be realized, not only save investment, and convenient management.


Standard 19-inch rack installation mode


The NC616E series features a professional housing design that can be mounted and secured to the standard 19


On the inch rack, the humanized layout of the interface and indicator, the RJ45 connector,


The NC616E is not only beautiful after being installed on the rack, but also easy to observe and dimension


Protect.


Supports two IP addresses and two MAC addresses, and easily connects to two network segments


The Real COM driver for Windows is supported, allowing up to six PCS to open the same serial port on NC616E devices at the same time


Provides advanced Settings for serial ports. You can set the network packet packing mechanism based on the actual network conditions to ensure that the IO-SERVER can adapt to various networks


Supports TCP and UDP sockets. Each serial port supports six sessions (TCP, UDP, TCP, and UDP)


Advanced and comprehensive security mechanism: Read, write, and control permissions can be set by IP address, MAC address, and user


TCP complies with RFC2217 standards and provides standardized programming and development interfaces for users


Supports serial port terminals connected to UNIX hosts for multi-screen switching (up to 6 screens)


Supports SNMP MIB-II network management


Friendly Chinese or English Settings interface


Excellent performance CPU (32bit, 100MHz), easy to achieve 16 port data high


Fast parallel (460800bps)


High performance industrial grade chip, suitable for wider temperature range


Serial chip has short circuit protection and 15KV ESD protection


Advanced hardware WATCH DOG and software WATCH DOG, as well as anti-wire locking mechanism, make the equipment work more reliable and stable


Attribute NC616E

The processor is 32bit and 100MHz

Memory 8M

Network port Two Ethernet ports

Speed: 10/100M adaptive, can also support manual setting.

The parameters include: 10M half duplex, 10M full duplex, 100M half duplex, 100M full duplex

Protection: 2KV electromagnetic isolation

Serial port: 16 RS-232 serial ports

Form: RJ45

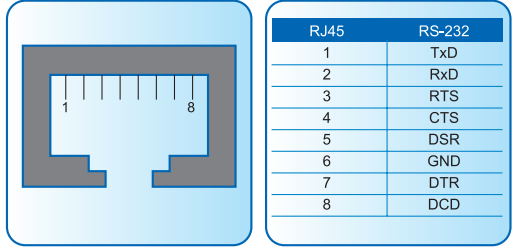

Signal: RS-232: TxD/RxD/RTS/CTS/DTR/DSR/DCD/GND

Protection: 15KV ESD protection, short circuit protection

Serial communication parameters: None, Even, Odd, Space, Mark

Data bits: 5,6,7,8

Stop bits: 1,1.5, 2

Flow control: RTS/CTS, Xon/Xoff

Speed: 50~460800bps

Software features: DHCP, TELNET, TCP, UDP, IP, ICMP, ARP, SNMP, PPP

Real COM driver: Windows NT/2000/XP/2003 COM driver

Fixed tty: Fixed TTY driver for SCO UNIX and Linux

TELNET, Console, and WEB, including Chinese menu and English menu (optional)

NMS Function SNMP MIB-II

Power requirements NC616:176 ~264VAC, 47 ~ 63 Hz

NC616-220V: 176~264VDC

NC616-110V: 100V to 240VDC

Nc616-48 V: 36V to 60VDC

NC616-24V: 18V~36VD

Material: metal shell

Weight: 2.8 kg

Operating environment Operating temperature: -20~85℃

Operating humidity: 5~95%

Storage temperature: -20~85℃

Storage humidity: 5~95%

Certified CE, FCC




Model number


specification


NC616E


Two 10M/100M network ports, 16 port RS-232 serial port communication server, 15 kVESD protection, standard 1U high 19 inches rack


Note: 1. Power supply: AC220V, DC24V/48V/110V/220V


2. Serial port: RJ45


3. Cpl-rj45m9 :RJ45 to DB9-pin cable


Cpl-rj45f9 :RJ45 to DB9 cable


Cpl-rj45m25 :RJ45 to DB25-pin cable


Cpl-rj45f25 :RJ45 to DB25 cable


The above products include equipment, installation CD, certificate of qualification
