Product Introduction
1. Support point-to-point protocol (PPP) BBSea NC616 Optical isolation series serial communication server supports PPP, PAP, and DHCP And other agreements to provide dial-in and dial-out services. Powerful processor (32bits,100M) and Large memory (8M) makes it fast and stable. 2. Unique and practical parameter setting Network port Settings: The network port of BBSea IO-Server can be set to 10/100M Response mode and manual adjustment mode. You can adjust the IO-Server based on network conditions Working mode of a network port Serial port Settings: "After reading data from the serial port, the data is packaged and sent to the network ", this process is the serial port to Ethernet communication products in the process of internal procedures will A step to be taken. You can enter the BBSea IO-Server Settings for "packaging" when The machine is set up to suit particular networks and user programs. 3. Safety function Network security is very important for console administration. BBSea IO-Server provides restrictions including MAC address restrictions, IP address restrictions, and user restrictions Including a series of safety mechanisms. The permissions include read, write, and control
Online16 RS422/485 serial ports are provided
NC616 series IO-Servers provide a way for serial port devices to connect to Ethernet
Quick and easy connection. Because in the same model of IO-Server, can implement
RS-422/485 Coexistence of two types of serial ports, so when you have two types of serial ports
If the device needs to connect to the Ethernet network at the same time, only one IOServer is required
Now, not only save investment, but also convenient management.

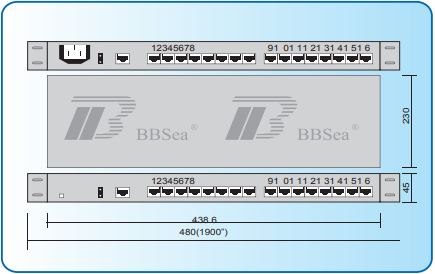

Standard 19-inch rack installation mode
The NC616 series features a professional housing design that can be mounted and secured to the standard 19
Inch rack, humanized layout design of interface and indicator, terminal connection, so that
After the NC616 is installed on the rack, it is not only beautiful, but also easy to observe and maintain.
Network port: 10/100M mode adaptive, can be manually set
Real COM drivers for Windows are supported. Up to 6 drivers are allowed
Open the same serial port on the NC616 at the same time
Supports TCP and UDP sockets. Each serial port supports 6 sessions with different session modes (TCP SERVER, TCP CLIENT, and UDP).
Comprehensive security mechanism: Read, write, and control permissions can be set by IP address, MAC address, and user
The TCP mode complies with the RFC2217 standard and provides standardized programming interfaces for users. The serial port terminal can be connected to a UNIX host for multi-screen switching (up to six screens).
PPP that supports RADIUS user authentication
It can realize 16 PPP dial-in, dial-out and dial-back at the same time
Supports SNMP MIB-II network management
Users can set the network packaging timing according to the actual network conditions to better adapt to special and complex networks
attribute
NC616-16MID
processor
32bit, 100MHz
memory
8M
Network port
Speed: 10/100M adaptive, can also support manual setting.
The parameters include: 10M half duplex, 10M full duplex, 100M half duplex, 100M full duplex
Protection: 2KV electromagnetic isolation
Serial port
Ports: 16 serial ports

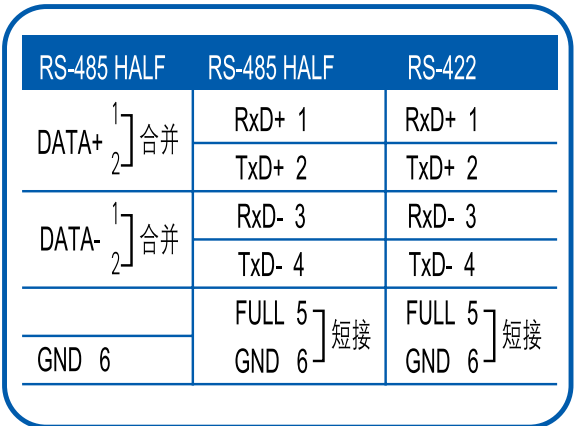

Form: terminal
Serial communication parameter
Check: None, Even, Odd, Space, Mark
Data bits: 5,6,7,8
Stop bits: 1,1.5, 2
Flow control: RTS/CTS, Xon/Xoff
Speed: 50~460800bps
Software characteristics
Protocol: DHCP, TELNET, TCP, UDP, IP, ICMP, ARP, SNMP, PPP
Real COM driver: Windows NT/2000/XP/2003 COM driver
Fixed tty: Fixed TTY driver for SCO UNIX and Linux
collocation
TELNET, Console, and WEB: Chinese menu and English menu (optional)
Network management function
SNMP MIB-II
Power demand
NC616-16MID: 176~264VAC, 47 to 63 Hz
NC616-16MID-220V: 176~264VDC
NC616-16MID-110V: 100V to 240VDC
Nc616-16mid-48 V: 36V to 60VDC
NC616-16MID-24V: 18V~36VD
Mechanical specification
Material: metal shell
Weight: 2.8 kg
Working environment
Operating temperature: -20~85℃
Operating humidity: 5~95%
Storage temperature: -20~85℃
Storage humidity: 5~95%
Pass the certification
CE, FCC
Model number
specification
NC616-16MID
16 RS422/485 serial communication servers with photoelectric isolation, serial port connection in terminal form, 220VAC power input
NC616-16MID-12V
16 RS422/485 serial communication servers with photoelectric isolation, serial port connection in terminal form, embedded DC power module, voltage range of 9-18VDC
NC616-16MID-24V
16 RS422/485 serial communication servers with photoelectric isolation, serial port connection in terminal form, embedded DC power module, voltage range 18-36VDC
NC616-16MID-48V
16 RS422/485 serial port communication servers with photoelectric isolation, serial port connection in terminal form, embedded DC power module, voltage range 36-72VDC
