Product Introduction
1. Support point-to-point protocol (PPP) BBSea NC608 Optical isolation series serial communication server supports PPP, PAP, and DHCP And other agreements to provide dial-in and dial-out services. Powerful processor (32bits,100M) and Large memory (8M) makes it fast and stable. 2. Unique and practical parameter setting Network port Settings: The network port of BBSea IO-Server can be set to 10/100M Response mode and manual adjustment mode. You can adjust the IO-Server based on network conditions Working mode of a network port Serial port Settings: "After reading data from the serial port, the data is packaged and sent to the network ", this process is the serial port to Ethernet communication products in the process of internal procedures will A step to be taken. You can enter the BBSea IO-Server Settings for "packaging" when The machine is set up to suit particular networks and user programs. 3. Safety function Network security is very important for console administration. BBSea IO-Server provides restrictions including MAC address restrictions, IP address restrictions, and user restrictions Including a series of safety mechanisms. The permissions include read, write, and control
OnlineNetwork port: 10/100M mode adaptive, can be manually set
Real COM drivers for Windows are supported. Up to 6 drivers are allowed
Open the same serial port on the NC608 at the same time on the PC
Supports TCP and UDP sockets. Each serial port supports six sessions
The modes are different (TCP SERVER, TCP CLIENT, and UDP).
Complete security mechanism: IP address, MAC address, and user can be used
Type to set read, write, and control permissions
TCP complies with RFC2217 standards and provides standardized programming interfaces for users
Supports serial port terminals connected to UNIX hosts for multi-screen switching (at most
Up to 6 screens)
PPP that supports RADIUS user authentication
It can realize the PPP dial-in, dial-out and dial-back of 8 ports at the same time
Supports SNMP MIB-II network management
Users can set network packaging timing according to the actual network conditions to better adapt
Eight RS422/485 serial ports are available
NC608 series iO-Servers provide a way for serial port devices to connect to Ethernet
Quick and easy connection. Because in the same model of IO-Server, can implement
RS-422/485 Coexistence of two types of serial ports, so when you have two types of serial ports
If the device needs to connect to the Ethernet network at the same time, only one IOServer is required
Now, not only save investment, but also convenient management.

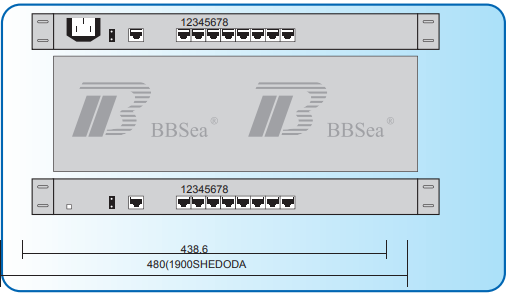

Standard 19-inch rack installation mode
The NC608 series features a professional housing design that can be mounted and secured to the standard 19
Inch rack, humanized layout design of interface and indicator, terminal connection, so that
After the NC608 is installed on the rack, it is not only beautiful but also easy to observe and maintain.
Unique and practical parameter setting
Network port Settings: The network port of BBSea IO-Ser ver can be set to 10/100M automatic
Dynamic adaptation mode and manual adjustment mode. You can adjust IO- based on network conditions
Working mode of the Server network port.
Serial port Settings: "After reading data from the serial port, the data is packaged and sent to the network
", this process is serial port to Ethernet communication products in the process of internal procedures
It's a step you have to take. You can go to the BBSea IO-Server Settings, the "package"
The timing is set to suit particular networks and user programs.
attribute
The NC608 rack
processor
32bit, 100MHz
memory
8M
Network port
Speed: 10/100M adaptive, can also support manual setting.
The parameters include: 10M half duplex, 10M full duplex, 100M half duplex, 100M full duplex
Protection: 2KV electromagnetic isolation
Serial port
Ports: Eight RS-232/422/485 serial ports
Form: RJ45
Protection: 15KV ESD/ protection, short circuit protection
Serial communication parameter
Check: None, Even, Odd, Space, Mark
Data bits: 5,6,7,8
Stop bits: 1,1.5, 2
Flow control: RTS/CTS, Xon/Xoff
Speed: 50-460.800bps
Software characteristics
Protocol: DHCP, Telnet, PPP/SLIP, TCP, UDP, IP, ICMP, ARP, SNMP, HTTP
Real COM driver: Windows NT/2000/XP/2003 COM driver
Fixed tty: Fixed TTY driver in UNIX and Linux
collocation
TELNET, Console, and WEB: Chinese menu and English menu (optional)
Network management function
SNMP MIB-II
Power input requirement
NC608:176~264VAC, 47 to 63 Hz
NC608-220V: 176~264VDC
NC608-110V: 100V to 240VDC
Nc608-48 V: 36V to 60VDC
NC608-24V: 18V to 36VDC
Mechanical specification
Material: metal shell
Weight: 2.6 kg
Working environment
Operating temperature: -20~85℃
Operating humidity: 5~95%
Storage temperature: -20~85℃
Storage humidity: 5~95%
Pass the certification
CE, FCC
Model number
specification
The NC608 rack
One 10M/100M network port, 8-port RS-232 serial port communication server, 15 kVESD protection, standard 1U high 19 inches rack
NC608-4M rack
One 10M/100M network port, four RS-232 and four RS422/485 serial communication servers, 15KVESD protection, standard 1U high 19 inches rack
NC608-8M rack
One 10M/100M network port, eight RS422/485 serial communication servers, 15KVESD protection, standard 1U high 19 inches rack
The NC608B rack
One 10M/100M network port, eight RS232/422/485 three-in-one serial communication servers, 15KVESD protection, standard 1U high 19 inches rack
Note: 1. Power supply: AC220V, DC24V/48V/110V/220V
2. Serial port: RJ45
3. Cpl-rj45m9 :RJ45 to DB9-pin cable
Cpl-rj45f9 :RJ45 to DB9 cable
Cpl-rj45m25 :RJ45 to DB25-pin cable
Cpl-rj45f25 :RJ45 to DB25 cable
The above products include equipment, installation CD, certificate of qualification
