NC608

Product Introduction

1. Support point-to-point protocol (PPP)
BBSea NC608 series serial communication servers support PPP, PAP, and DHCP
And other agreements to provide dial-in and dial-out services. Powerful processor (32bits,100M) and
Large memory (8M) makes it fast and stable.
2. Unique and practical parameter setting
Network port Settings: The network port of BBSea IO-Server can be set to 10/100M
Response mode and manual adjustment mode. You can adjust the IO-Server based on network conditions
Working mode of a network port
Serial port Settings: "After reading data from the serial port, the data is packaged and sent to the network
", this process is the serial port to Ethernet communication products in the process of internal procedures will
A step to be taken. You can enter the BBSea IO-Server Settings for "packaging" when
The machine is set up to suit particular networks and user programs.
3. Safety function
Network security is very important for console administration. BBSea
IO-Server provides restrictions including MAC address restrictions, IP address restrictions, and user restrictions
Including a series of safety mechanisms. The permissions include read, write, and control

Online

Product overview
Product characteristics
Technical index

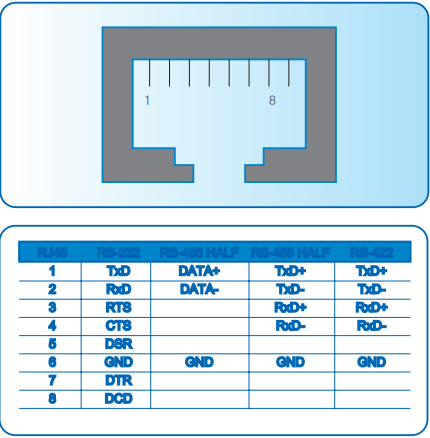

Dimensional line sequence
Purchase information
Relevant manuals

Eight RS-232/422/485 serial ports are provided

NC608 series IO-Servers provide convenience for connecting serial port devices to Ethernet

Fast connection mode. Because on the same model of IO-Server, RS- can be implemented

232 and RS-422/485 two types of serial port coexist, so when you have two types

If a serial port device needs to be connected to an Ethernet network, only one IO-Server is required

Can be realized, not only save investment, and convenient management.

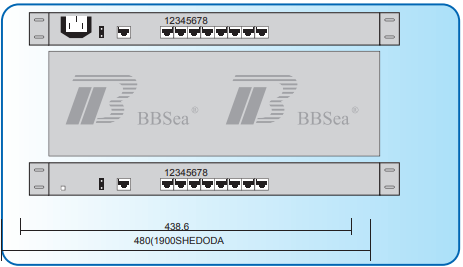

Standard 19-inch rack installation mode

The NC608 series features a professional housing design that can be mounted and secured to the standard 19

On the inch rack, the humanized layout of the interface and indicator, the RJ45 connector,

After the NC608 is installed on the rack, it is not only beautiful, but also easy to observe and maintain.

Unique and practical parameter setting

Network port Settings: The network port of BBSea IO-Server can be set to 10/100M automatic

Adaptive mode and manual adjustment mode. You can adjust IO- based on network conditions

Working mode of the Server network port

Serial port Settings: "After reading data from the serial port, the data is packaged and sent to the network

", this process is the serial port to Ethernet communication products in the process of internal procedures will

A step to be taken. You can enter the BBSea IO-Server Settings for "packaging" when

The machine is set up to suit particular networks and user programs

Standard 19 "for easy rack mounting

Network port: 10/100M mode adaptive, can be manually set

Serial port: RS-232/RS-422/485 serial ports can coexist with each other

In one device

Real COM drivers for Windows are supported, allowing up to 6 PCS

Enable the same serial port on the NC608 rack at the same time

Support TCP and UDP sockets, each serial port can support 6 sessions, and session mode

The formula can be different (TCP SERVER, TCP CLIENT, and UDP).

Complete security mechanism: IP address, MAC address, and user can be used

Type to set read, write, and control permissions

TCP complies with RFC2217 standards and provides standardized programming interfaces for users

Friendly Chinese or English menu configuration interface

Supports serial port terminals connected to UNIX hosts for multi-screen switching (at most

Up to 6 screens)

PPP that supports RADIUS user authentication

It can realize the PPP dial-in, dial-out and dial-back of 8 ports at the same time

Supports SNMP MIB-II network management

Users can set the network packaging timing according to the actual network conditions to better adapt to special and complex networks

Model and specification

NC616E Two 10M/100M network ports, 16 port RS-232 serial port communication server, 15 kVESD protection, standard 1U high 19 inches frame

Note: 1. Power supply: AC220V, DC24V/48V/110V/220V

2. Serial port: RJ45

3. Cpl-rj45m9 :RJ45 to DB9-pin cable

Cpl-rj45f9 :RJ45 to DB9 cable

Cpl-rj45m25 :RJ45 to DB25-pin cable

Cpl-rj45f25 :RJ45 to DB25 cable

The above products include equipment, installation CD, certificate of qualification



Model number

specification

The NC608 rack

One 10M/100M network port, 8-port RS-232 serial port communication server, 15 kVESD protection, standard 1U high 19 inches rack

NC608-4M rack

One 10M/100M network port, four RS-232 and four RS422/485 serial communication servers, 15KVESD protection, standard 1U high 19 inches rack

NC608-8M rack

One 10M/100M network port, eight RS422/485 serial communication servers, 15KVESD protection, standard 1U high 19 inches rack

The NC608B rack

One 10M/100M network port, eight RS232/422/485 three-in-one serial communication servers, 15KVESD protection, standard 1U high 19 inches rack
