Product Introduction
1. Support point-to-point protocol (PPP) BBSea NC604 series serial communication servers support PPP, PAP, and DHCP And other agreements to provide dial-in and dial-out services. Powerful processor (32bits,100M) and Large memory (8M) makes it fast and stable. 2. Unique and practical parameter setting Network port Settings: The network port of BBSea IO-Server can be set to 10/100M Response mode and manual adjustment mode. You can adjust the IO-Server based on network conditions Working mode of a network port Serial port Settings: "After reading data from the serial port, the data is packaged and sent to the network ", this process is the serial port to Ethernet communication products in the process of internal procedures will A step to be taken. You can enter the BBSea IO-Server Settings for "packaging" when The machine is set up to suit particular networks and user programs. 3. Safety function Network security is very important for console administration. BBSea IO-Server provides restrictions including MAC address restrictions, IP address restrictions, and user restrictions Including a series of safety mechanisms. The permissions include read, write, and control
Online◆ Complete and thoughtful design ideas, to provide you with detailed and complete solutions.
With the continuous development of the product, BBSea NC604 system 4 serial communication server derived more than 10 types of products, to meet the needs of different industries or users, become NC604 system products. The system can provide not only four RS-232 or RS-422/485 serial ports, but also two RS-232 and two RS-422/485 serial ports. The design of multiple power levels can meet the power requirements of different sites; The addition of RS422/485 photoelectric isolation ensures that the product works stably in the harsh industrial field environment.
The serial port device connects to the network
BBSea NC604 Series 4 Serial port communication server provides a convenient software and hardware platform for multiple serial port devices to connect to the network at the same time, is connected to the NC604 system 4 serial port communication server provides a convenient software and hardware platform for multiple serial port devices to connect to the network at the same time. It is ideal for IP-Based networks connecting RS-232/422/485 devices. For example, PIC, meter and sensor enable you to access serial port devices anytime and anywhere over the network.
◆ Standard TCP/IP interface and various operating modes
BBSea NC604 series serial communication servers provide TCP SERVER, TCP CLIENT and UDP. They use the unified network API (Winsock BSD Sockets) to ensure the compatibility of network software.
◆ Provides the COM real port driver for Windows
Because NC604 comes with Windows COM real port driver software, users can open the COM port on a PC to access NC601A serial port data. This nice feature ensures that you invest in your software and enjoy the benefits of networking serial devices. The COM real port program of NC604 supports the following operating systems: Windows NT,Windows 2000,Windows XP,Windows 2003, etc.
Easy installation and configuration
The NC604 Serial port communication server supports IP address automatic configuration protocol (DHCP) and manual configuration through the CONSOLE port. These methods ensure a fast and efficient installation. The unique Chinese Settings menu makes your installation more enjoyable than ever.

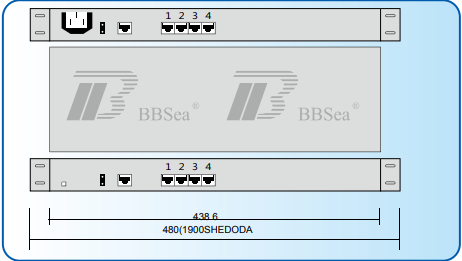

Standard 19 "for easy rack mounting
Network port: 10/100M mode adaptive, can be manually set
Serial port: RS-232/RS-422/485 serial ports can coexist with each other
In one device
Real COM drivers for Windows are supported. Up to 6 drivers are allowed
Enable the same serial port on the NC604 rack at the same time
Support TCP and UDP sockets, each serial port can support 6 sessions, and session mode
The formula can be different (TCP SERVER, TCP CLIENT, and UDP).
Complete security mechanism: IP address, MAC address, and user can be used
Type to set read, write, and control permissions
TCP complies with RFC2217 standards and provides standardized programming interfaces for users
Friendly Chinese or English menu configuration interface
Supports serial port terminals connected to UNIX hosts for multi-screen switching (at most
Up to 6 screens)
PPP that supports RADIUS user authentication
It can realize PPP dial-in, dial-out and dial-back of 4 ports at the same time
Supports SNMP MIB-II network management
Users can set the network packaging timing according to the actual network conditions to better adapt to special and complex networks
attribute
NC604
processor
32bit, 100MHz
memory
2M
Network port
Speed: 10/100M adaptive, can also support manual setting.
The parameters include: 10M half duplex, 10M full duplex, 100M duplex, 100M full duplex
Protection: Embedded 2KV electromagnetic isolation
Serial port
4
Serial communication parameter
Check: None, Even, Odd, Space, Mark
Data bits: 5,6,7,8
Stop bits: 1,1.5, 2
Flow control: RTS/CTS, Xon/Xoff
Speed: 50~460800bps
Software characteristics
Protocol: DHCP, Telnet, PPP/SLIP, TCP, UDP, IP, ICMP, ARP, SNMP, HTTP
Real COM driver: Windows NT/2000/XP/2003 COM driver
Fixed tty: Fixed TTY driver in UNIX and Linux
collocation
TELNET, Console, and WEB: Chinese menu and English menu (optional)
Mechanical specification
Material: aluminum metal shell
Working environment
Operating temperature: -20~85℃
Operating humidity: 5~95%
Storage temperature: -20~85℃
Storage humidity: 5~95%
Pass the certification
CE, FCC
Model number
specification

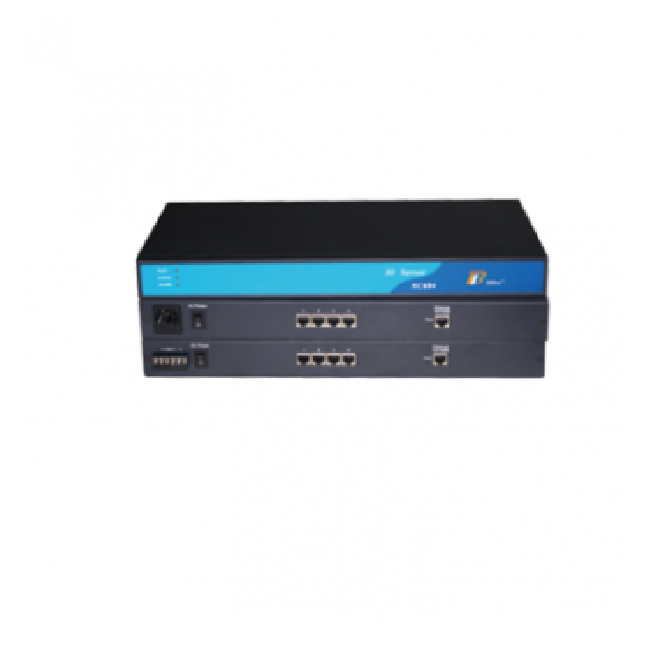

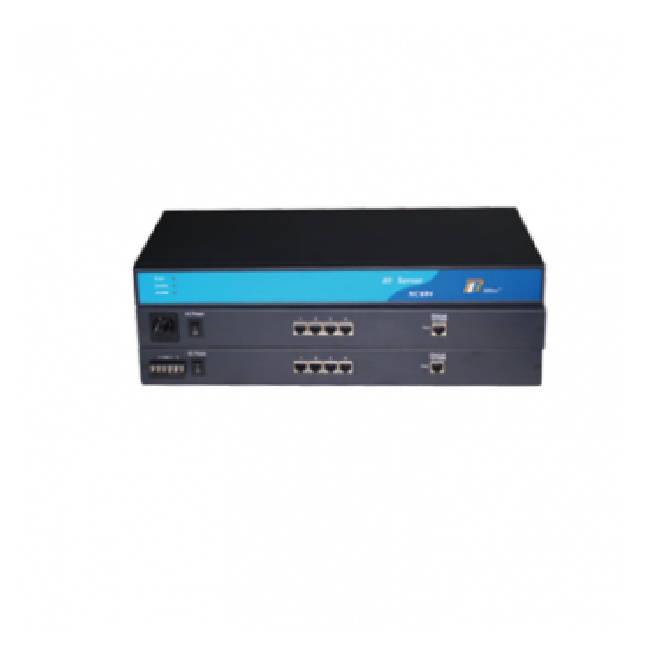

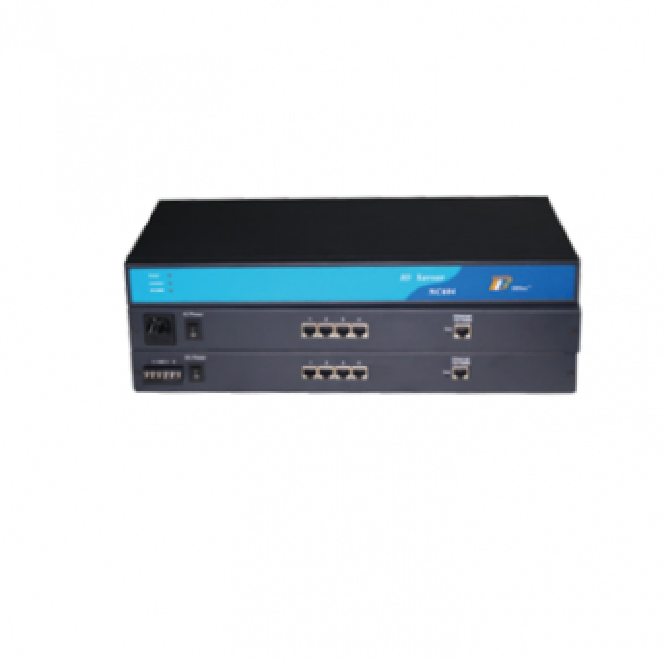

The NC604 rack
One 10M/100M network port, four port RS-232 serial port communication server, 15 kVESD protection, standard 1U high 19 inches rack
The NC604-2M rack
One 10M/100M network port, two RS-232 and two RS422/485 serial communication servers, 15KVESD protection, standard 1U high 19 inches rack
NC604-4M rack
One 10M/100M network port, two RS422/485 serial communication servers, 15KVESD protection, standard 1U high 19 inches rack
The NC604B rack
One 10M/100M network port, two RS232/422/485 three-in-one serial communication servers, 15KVESD protection, standard 1U high 19 inches rack
Note: 1. Power supply: AC220V, DC24V/48V/110V/220V

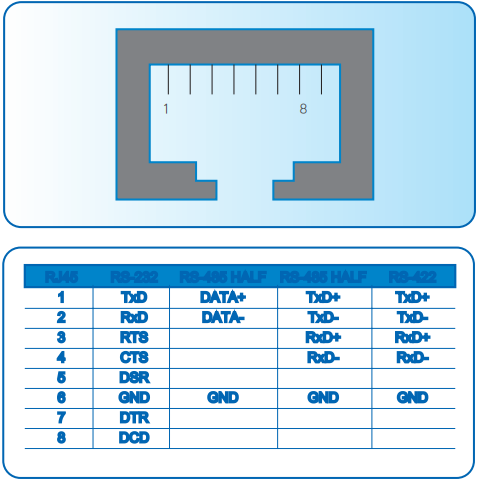

2. Serial port: RJ45
3. Cpl-rj45m9 :RJ45 to DB9-pin cable
Cpl-rj45f9 :RJ45 to DB9 cable
Cpl-rj45m25 :RJ45 to DB25-pin cable
Cpl-rj45f25 :RJ45 to DB25 cable
The above products include equipment, installation CD, certificate of qualification
