Project background:

In general, the highway tunnel is unattended, and the distance between the tunnel and the monitoring center is far. It is necessary to build a highly reliable network platform which can adapt to the tunnel environment to ensure the real-time uploading of various monitoring data in the tunnel and the real-time monitoring of tunnel equipment by the monitoring center, so as to realize the normal operation of the tunnel. The harsh environment of tunnel monitoring system and the requirement of real-time data make industrial Ethernet switch the best network scheme of tunnel monitoring system at present.

Requirements for Industrial Ethernet Switches in highway tunnel monitoring system:

♦ Industrial quality, adapt to harsh environmental requirements

♦ Flexible networking, high reliability, and high scalability

♦ Network redundancy is supported to ensure real-time and reliable data

♦ Power Supply redundancy, high reliability

♦ VLAN Support

♦ Supports network management for remote device management

DCN Industrial Ethernet product Features:

♦ IP40 industrial grade, wide temperature range -40 ~ +85℃, rail installation mode

♦ Provides complete solutions for the access layer

♦ Multi-port design, flexible configuration according to different site requirements

♦ Redundant power supply, wide voltage input range 85 ~ 264VAC, 24 ~ 300VDC

♦ Low power consumption, no fan design

♦ ERTP loop redundancy technology, < 5ms link recovery

♦ MRPP Fast Loop switching technology < 50ms data switching, carrier class standard

♦ Patented technology ensures power failure protection for as long as 1 second

♦ Hardware IPV6

♦ L2, L3 software packages and full-line speed forwarding

♦ Strong network security and network management

♦ Rich QOS policies

♦ Support RMON

♦ Port-based VLAN is supported

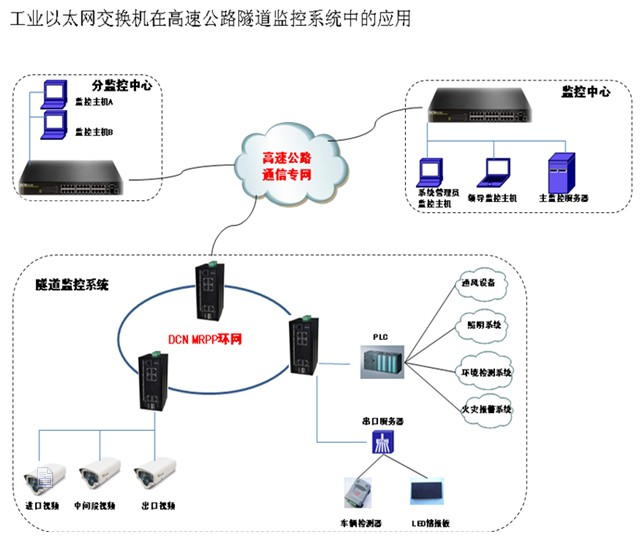

Schematic diagram of the scheme:
