NC648

Product Introduction

◇ Standard rack type 19-inch 1U chassis
Support LCD display and button configuration
10/100/1000 M adaptive Ethernet port for fast networking of serial devices
SFP interface for optical or electrical transmission (optional).
USB HOST interface can realize a variety of expansion: WIFI, 3/4G, USB storage (optional).
◇ High-performance processor, large memory space
◇ You can configure parameters remotely through the WEB browser through the network
Built-in 15KV ESD surge protection
Intuitive Chinese menu setting interface, so that the installation and configuration more simple
◇ RS-232/422/485 port can be combined flexibly, and type conversion depends on software Settings
Support through the network to achieve the local virtual COM driver
◇ Working mode Support Realport,Telnet, SSH and other modes
◇ User management Settings support multi-user access and permission management
Support TCP and UDP sockets, each serial port can support multi-channel session mode
The NTP server allows you to set time zones
◇ With RTC clock
Port status monitoring Real-time monitoring of serial port devices online
Heartbeat packet Settings and log management
VPN function
Support SNMP MIB II network management

Online

Product overview
Product characteristics
Technical index

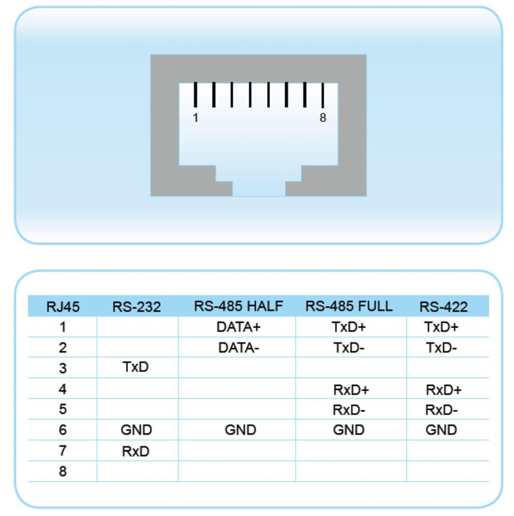

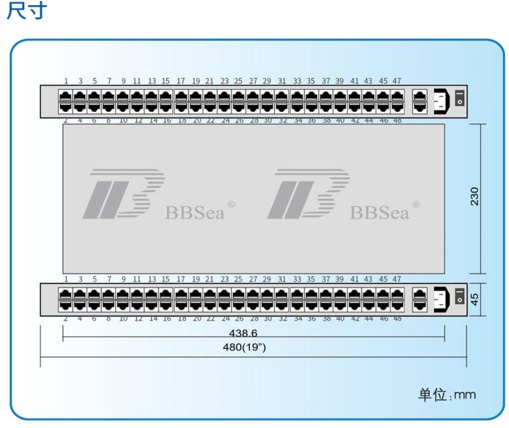

Dimensional line sequence
Purchase information
Relevant manuals

48 RS-232/422/485 serial ports are provided

NC648 series IO-Servers provide a convenient and fast connection between serial port devices and Ethernet. The IO-Server of the same model can co-exist with RS-232 and RS-422/485 serial ports. Therefore, when two types of serial devices need to be connected to the Ethernet network, only one IO-Server is needed, which saves investment and facilitates management.

Standard 19-inch rack installation mode

NC648 series adopts professional shell design, which can be installed and fixed on the standard 19 inch frame. The humanized layout design of the interface and indicator light, and the RJ45 connector make NC648 not only beautiful after being installed on the frame, but also easy to observe and maintain.

Unique and practical parameter setting

Network port Settings: The network port of BBSea IO-Server can be set to 10/100M automatic adjustment mode and manual adjustment mode. You can adjust the operating mode of the IO-Server network port according to the actual network conditions. The serial port Settings are as follows: "Read data from the serial port and package the data to the network." This process is a necessary step in the internal program running of serial port-to-Ethernet communication products. You can go to the BBSea IO-Server Settings and set the timing of "packaging" to suit particular networks and user programs.

Network port :10/100M mode can be auto-adapted or manually set

· Serial port: free combination of RS-232/RS-422/485 serial ports can coexist in the same NC648B

· Numerous serial ports to achieve high cost performance

· Compact structure, 48 serial ports only account for 1U height of standard rack

The Real COM driver for Windows is supported, allowing up to six PCS to open the same serial port on NC648B devices at the same time

· Support TCP and UDP sockets, each serial port can support 6 sessions, and the session mode can be different

· Support multicast UDP

· Perfect security mechanism: Read, write and control permissions can be set by IP address, MAC address and user

The TCP mode complies with the RFC2217 standard and provides standardized programming for users. The serial port terminal can be connected to the UNIX host to realize multi-screen switching (up to 6 screens).

· PPP that supports RADIUS user authentication

· PPP plug in, dial out, and dial back at the same time Support SNMP MIB-II Network management Users can set the network packaging timing according to the actual network conditions to better adapt to special and complex networks

Core: ARM Cortex-A9 dual-core processor Main frequency: 1.866GHz

Cache: 32KB instruction, 32KB data, 1MB share

Memory: DDR3 2GB

Flash memory: SPI Flash 16MB, NAND Flash 256MB

Ethernet: Two connectors: RJ45

Ethernet speed: 10/100/1000 Mbps adaptive

Port protection: 15KV ESD surge protection

USB: 2 PCS (optional)

USB type: USB 2.0/3.0

Connector: USB Type A

USB speed: 480Mbps, 12Mbps, 1.5Mbps (optional)

SFP port: One SFP Ethernet /SFP Optical port 1000Mbps (Optional)
