Product Introduction
1. Support point-to-point protocol (PPP) BBSea NC632 series serial communication servers support PPP, PAP, and DHCP And other agreements to provide dial-in and dial-out services. Powerful processor (32bits,100M) and Large memory (8M) makes it fast and stable. 2. Unique and practical parameter setting Network port Settings: The network port of BBSea IO-Server can be set to 10/100M Response mode and manual adjustment mode. You can adjust the IO-Server based on network conditions Working mode of a network port Serial port Settings: "After reading data from the serial port, the data is packaged and sent to the network ", this process is the serial port to Ethernet communication products in the process of internal procedures will A step to be taken. You can enter the BBSea IO-Server Settings for "packaging" when The machine is set up to suit particular networks and user programs. 3. Safety function Network security is very important for console administration. BBSea IO-Server provides restrictions including MAC address restrictions, IP address restrictions, and user restrictions Including a series of safety mechanisms. The permissions include read, write, and control
Online♦ Network port: 10/100M mode can be self-adaptive, can also be manually set
♦ Serial port: RS-232/RS-422/485 serial ports can coexist in the same NC632
♦ A large number of serial ports to achieve high cost performance

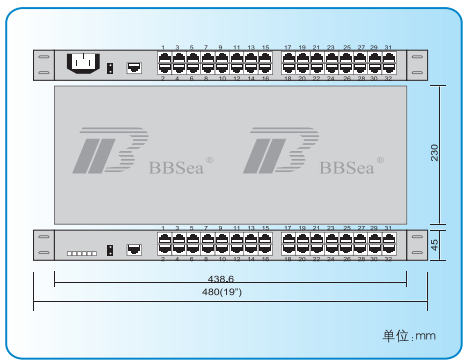

♦ Compact structure, 32 serial ports only take up 1U height of standard rack
♦ Real COM drivers for Windows are supported, up to a maximum
♦ Open the same serial port on the NC632 on six PCS
♦ Supports TCP and UDP sockets. Each serial port supports six sessions in different session modes
♦ Multicast UDP is supported
♦ Security mechanism: Read, write, and control permissions can be set by IP address, MAC address, and user
♦ TCP complies with RFC2217 standards and provides standardized programming interfaces
♦ Serial port terminals are connected to UNIX hosts for multi-screen switching (up to 6 screens).
♦ PPP Supports RADIUS user authentication
♦ 32 PPP dial-in, dial-out and dial-back at the same time
♦ Supports SNMP MIB-II network management
♦ Users can set network packaging timing based on actual network conditions to better adapt to special and complex networks
Attribute NC632
The processor is 32bit and 100MHz
Memory 8M
Network port One Ethernet port
Speed: 10/100M adaptive, can also support manual setting.
The parameters include: 10M half duplex, 10M full duplex, 100M half duplex, 100M full duplex
Protection: 2KV electromagnetic isolation
Serial port: 32 serial ports
Form: RJ45
Protection: 15KV ESD protection, short circuit protection
Serial communication parameters: None, Even, Odd, Space, Mark
Data bits: 5,6,7,8
Stop bits: 1,1.5, 2
Flow control: RTS/CTS, Xon/Xoff
Speed: 50~460800bps
Software features Agreement: DHCP, TELNET, TCP, UDP, IP, ICMP,
ARP, SNMP, PPP
Real COM driver: Windows NT/2000/XP/2003 COM driver
Fixed tty: Fixed TTY driver for SCO UNIX and Linux
TELNET, Console and WEB are available. The format includes Chinese dishes
Single and English menu (optional)
NMS Function SNMP MIB-II
Power requirements NC616:176 ~264VAC, 47 ~ 63 Hz
NC616-220V: 176~264VDC
NC616-110V: 100V to 240VDC
Nc616-48 V: 36V to 60VDC
NC616-24V: 18V~36VD
Material: metal shell
Weight: 2.9 kg
Operating environment Operating temperature: -20~85℃
Operating humidity: 5~95%
Storage temperature: -20~85℃
Storage humidity: 5~95%
Certified CE, FCC
Model number
specification
NC632
One 10M/100M network port, 32 port RS-232 serial port communication server, 15 kVESD protection, standard 1U high 19 inches rack
NC632-16M
One 10M/100M network port, 16 RS-232 and 16 RS422/485 serial communication servers, 15KVESD protection, standard 1U high 19 inches rack
NC632-32M
One 10M/100M network port, 32 RS422/485 serial communication servers, 15KVESD protection, standard 1U high 19 inches rack
Note: 1. Power supply: AC220V, DC24V/48V/110V/220V

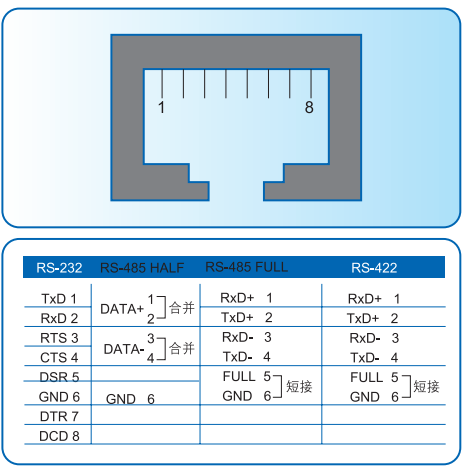

2. Serial port: RJ45
3. Cpl-rj45m9 :RJ45 to DB9-pin cable
Cpl-rj45f9 :RJ45 to DB9 cable
Cpl-rj45m25 :RJ45 to DB25-pin cable
Cpl-rj45f25 :RJ45 to DB25 cable
The above products include equipment, installation CD, certificate of qualification
